Support PELCO-D,PELCO-P and VISCA Control protocol IP Network PTZ Keyboard Controller For PTZ Video Conference Camera

Name: Support PELCODPELCOP and VISCA Control protocol IP Network PTZ Keyboard Controller For PTZ Video Conference Camera
Brand: WEDOLNNOV
Price: 1 USD

Quality Support PELCO-D,PELCO-P and VISCA Control protocol IP Network PTZ Keyboard Controller For PTZ Video Conference Camera for sale

Brand Name : WEDOLNNOV

Model Number : FT-K02

Certification : CE ROHS

Place of Origin : Guangdong China

MOQ : 1pcs

Payment Terms : T/T, Western Union, MoneyGram paypol

Supply Ability : 2000pcs

Delivery Time : 2-6work days

Packaging Details : standard caton box with tick pearl cotton

Origin : CN(Origin)

Type : Video Conference System

Contact Now

Support PELCO-D,PELCO-P and VISCA Control protocol IP Network PTZ Keyboard Controller For PTZ Video Conference Camera

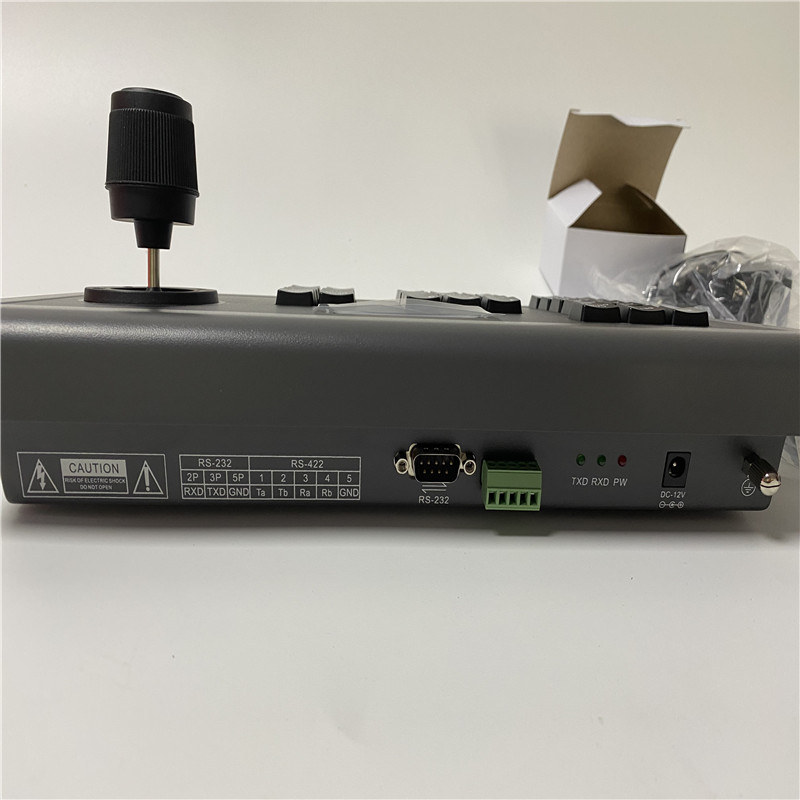

Adopt RS485, RS422, RS232 multiple interface control signals, max up to 255 cameras

Support PELCO-D,PELCO-P and VISCA Control protocol

Metal housing, computer keyboard button design

Adopt 3D joystick to control the camera speed.

Control camera rotation, zoom, aperture, focus and other camera parameter settings

English & Chinese LCD display, displaying the real-time working status of the decoder and matrix

With button sound prompt function

Unique control code learning function allows customers to modify control code commands by themselves

Any device connected with RS485 cable can be set with different protocols and baud rates separately.

RS422 communication interface has the over-current protection ability to recover from short circuit.

The max communication distance is up to 1200M(0.5MM Twisted Pair Cable).

Technical Parameters

Parameters /Model No
Communication Mode	RS485 Half duplex,RS422 Full duplex,RS232 Serial Port
Baud Rate	2400bps,4800bps,9600bps,19200bps
Interfaces	5PIN Crimping terminal,RS232 Port
Joystick Rocker	3D Control:Up,Down,Left,Right,Rotate)
Display	Blue screen LCD
Input voltage	DC12V±10%
Power Consumption	6W MAX
Temperature	-10℃～50℃
Humidity	≦90%RH(No frosting)
Dimension	320mm(L)X179.3mm(W)X106.4mm(H)
